Attachments list

31 posts
Attachments list
User avatar
GabrieleV
MMEX Developer

Posts: 266
Joined: Wed Apr 09, 2014 1:45 pm
Location: Italy
With this report you can see all attachments inserted in MMEX.
Currently links to open directly attachment on filename works only if you use a custom directory as attachments archive.

Attachment list.grm
Attachment list report
(1.59 KiB) Downloaded 208 times

SQL
Code: Select all
SELECT A.reftype AS Type, A.refid AS Nr,
C.transdate||' | '||AC.AccountName||' | '|| CURR.pfx_symbol||round(C.Transamount, 2) ||CURR.sfx_symbol AS Reference,
A.description AS Description, A.filename AS File,
(SELECT infovalue FROM infotable_v1 WHERE infoname = 'ATTACHMENTSFOLDER:Win' COLLATE NOCASE) AS BasePath,
"\"||A.reftype||"\"||A.filename AS FilePath, '' AS BasepathLUA
FROM attachment_v1 A
    INNER JOIN checkingaccount_v1 C ON C.transid = A.refid
    INNER JOIN accountlist_v1 AC ON C.accountid = AC.accountid
    INNER JOIN currencyformats_v1 CURR ON AC.currencyid = CURR.currencyid
ORDER BY A.reftype,A.refid,A.filename;


LUA
Code: Select all
function get_base_path (BasePath,FilePath)
    if BasePath == "DOCSDIR" then
       BasePath = "#";
    elseif BasePath == "MMEXDIR" then
       BasePath = "#";
    elseif BasePath == "DBDIR" then
       BasePath = "#";
    else
       BasePath = "file:///" .. BasePath .. FilePath;
   end
    return BasePath;
end

function handle_record(record)
    record:set("BasepathLUA", get_base_path(record:get("BasePath"),record:get("FilePath")));
end


TEMPLATE
Code: Select all
<!DOCTYPE html>
<html>
<head>
    <meta charset="UTF-8" />
    <meta http - equiv = "Content-Type" content = "text/html" />
    <title><TMPL_VAR REPORTNAME></title>
    <script src = "Chart.js"></script>
    <link href = "master.css" rel = "stylesheet" />
</head>
<body>
<div class = "container">
<h3><TMPL_VAR REPORTNAME></h3>
<TMPL_VAR TODAY><hr>
<div class = "row">
<div class = "col-xs-2"></div>
<div class = "col-xs-8">
<table class = "table">
<thead>
    <tr>
        <th>Type</th>
        <th>Nr</th>
        <th>Reference</th>
        <th>Description</th>
        <th>File</th>
    </tr>
</thead>
<tbody>
    <TMPL_LOOP NAME=CONTENTS>
        <tr>
        <td><TMPL_VAR "Type"></td>
        <td class = "text-right"><TMPL_VAR "Nr"></td>
        <td><TMPL_VAR "Reference"></td>
        <td><TMPL_VAR "Description"></td>
   <td><a href="<TMPL_VAR "BasePathLUA">"><TMPL_VAR "File"></a></td>
        </tr>
    </TMPL_LOOP>
</tbody>
</table>
</div>
<TMPL_LOOP ERRORS>
    <hr>
    <TMPL_VAR ERROR>
</TMPL_LOOP>
</div>
</div>
</body>
<script>
<!--Format numbers-->
    function currency(n) { n = parseFloat(n); return isNaN(n) ? 0 : n.toFixed(2); }
    var elements = document.getElementsByClassName("money, text-right");
    for (var i = 0; i < elements.length; i++)
        { elements[i].innerHTML = "<TMPL_VAR PFX_SYMBOL>" + currency(elements[i].innerHTML) + "<TMPL_VAR SFX_SYMBOL>"; }
</script>
</html>
Re: Attachments list

Nikolay
MMEX Developer

Posts: 2284
Joined: Sat Dec 06, 2008 8:27 am
Location: Sankt-Petersburg, Russia
Code: Select all
    <script src = "Chart.js"></script>
not needed
Re: Attachments list
User avatar
GabrieleV
MMEX Developer

Posts: 266
Joined: Wed Apr 09, 2014 1:45 pm
Location: Italy
Yes, it was auto-added by template..
Re: Attachments list

guanlisheng
MMEX Developer

Posts: 279
Joined: Tue Dec 20, 2011 11:58 pm
Location: China
Cool and could we add it to github as well.
Re: Attachments list

elwood1229
Super MMEX User

Posts: 32
Joined: Sat Mar 22, 2014 8:59 pm
This report is helpful and working well except for one thing. While it lists all of the transactions that have attachments, when I click on the hyperlink that I assume is designed to open the attachment, it comes up with a blank screen with only a small box with an "x" in it in the upper left hand corner. I do have the MMEX database in a folder called "MoneyManagerEx Mobile" which is located in my DropBox account. That may be causing the problem but I wasn't sure whether/how to change the path since it seems to be generated automatically in the Lua and I didn't want to mess anything up. Any directions would be appreciated.

I was also wondering if it would be possible somehow to make it possible to click on the transaction number (or something) and have it open the transaction associated with the attachment?

Thanks for your work.

Elwood
Re: Attachments list

Nikolay
MMEX Developer

Posts: 2284
Joined: Sat Dec 06, 2008 8:27 am
Location: Sankt-Petersburg, Russia
Please check Options - Attachmens tab settins.
Re: Attachments list

elwood1229
Super MMEX User

Posts: 32
Joined: Sat Mar 22, 2014 8:59 pm
Thank you for the response. I did check the settings under Options > Import/Export > Attachment Settings. I did in fact have the wrong folder specified but even after correcting that, it is still not working. When I selected the "systems subdirectory" option, nothing happens when I click on a link on the Attachment report. When I select "Money Manager Directory" option and click on a link, nothing happens. When I select "Database file directory" option, nothing happens--well, technically it scrolls back to the top of report. When I select "User Defined" option, and dig down to the "attachments\Transactions" folder (where I can see the attached pdfs in file explorer), and click on a link I get a page that shows "This page can't be displayed." I am not sure where I am going wrong on this.

Elwood
Re: Attachments list
User avatar
GabrieleV
MMEX Developer

Posts: 266
Joined: Wed Apr 09, 2014 1:45 pm
Location: Italy
As I've written, report currently works only if you choose "User Defined".

In "User Defined" you have to set the path to top-level folder, so in your example:
dig down to the "attachments\Transactions" folder

you have to choose "attachments" folder, not "Transaction" folder that is auto-created by MMEX.

Please take attenction modifying attachment folder if you have already inserted attachments because,
if not well managed, it can breaks expected behaviour and file structure.
Re: Attachments list

elwood1229
Super MMEX User

Posts: 32
Joined: Sat Mar 22, 2014 8:59 pm

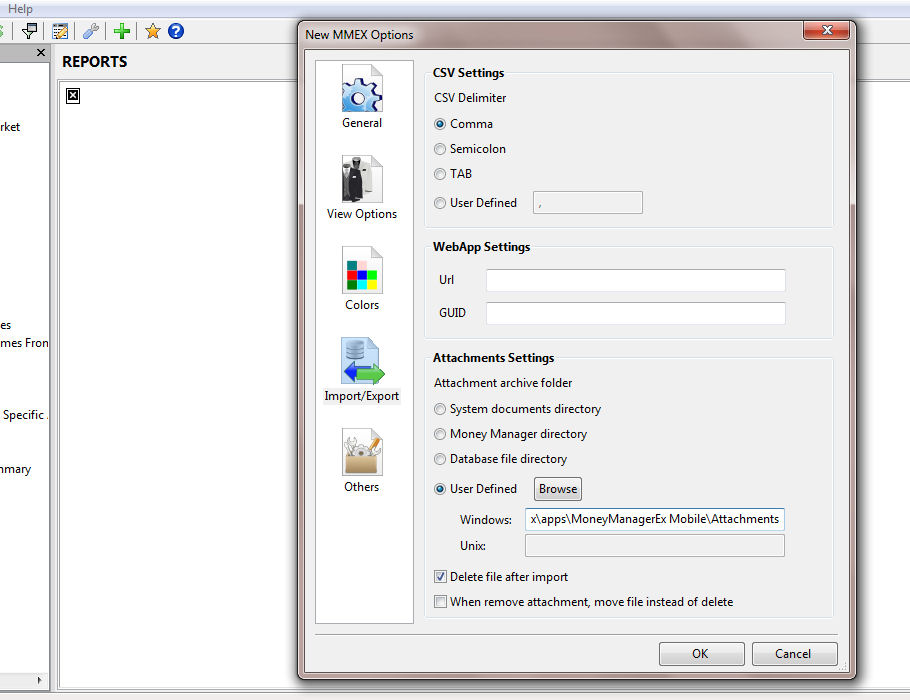

Thanks again. I actually had the path set to the "Attachment's folder originally. I reset the path to that folder and am back to getting a blank screen with a small black box with an "x" in it at the upper left corner. I don't know if it will help, but I am attaching a screen shot with the option dialog open showing the path as it is set; behind the option dialog is the report screen after clicking on a link in the attachment report (path is set as shown in the options dialog). Sorry to be difficult, but I don't see what is wrong. BTW, when I click on the paper clip icon on a transaction with a file attached, the attachment pdf opens correctly with this setting.

Elwood
Attachments
(94.41 KiB) Downloaded 1023 times
Re: Attachments list
User avatar
GabrieleV
MMEX Developer

Posts: 266
Joined: Wed Apr 09, 2014 1:45 pm
Location: Italy
Ok, attachments settings are correct.

If you right-click somewhere in the report and choose "view source" what did you see as href?
